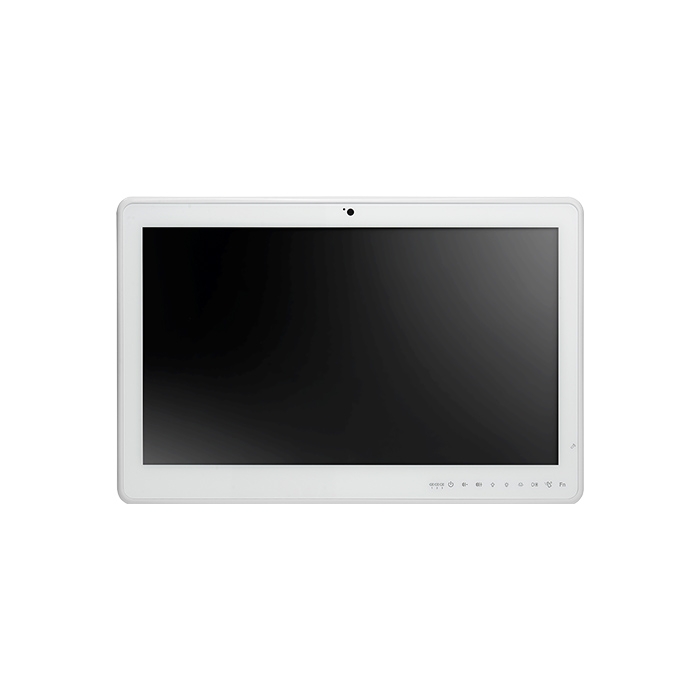

Product Name : WMP-22H MXM Kaby Lake 22"
Product Introduction
Ideal for Mobile Medical Image PC

Up to Three Hot Swappable Batteries and MXM Graphics

These medical cart panel PC with hot swappable batteries are designed to be used with non-powered carts. Hot swap batteries provide up to 8-10 hours of up time on a single charge. Wincomm innovated i-Control intelligent management SW to optimize CPU, Thermal, and Power performance to utilize computing performance to secure medical professionals using safty in any condition while under mobile medical cart applications.

  • Anti-MRSA Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel making it easy to clean and disinfect.
  • Design with Independent MXM Graphic Card to Support High Resolution Medical Image Processing
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 7th  Gen Intel Core CPU
    Our medical cart computers offer the Kaby Lake 7th generation Intel® Core i3/i5/i7 processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. 5M Webcam & RFID antenna & TPM 2.0 & DP display interface for up to 2

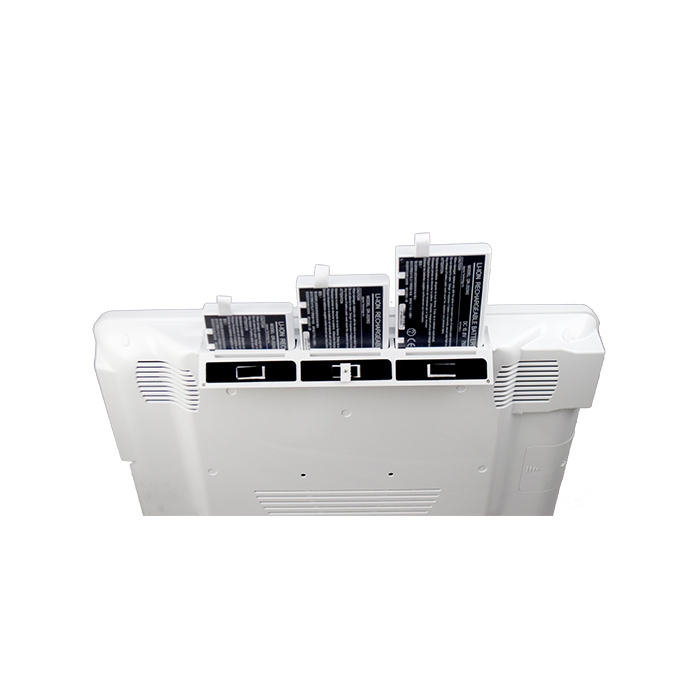

Hot Swappable Batteries x 3 – normal operation time over 8-10 hours for nursing cart usage

Hot Swappable Batteries Designed by Wincomm Featured:

  • Compatible with all WMP G/H series
  • Battery Indicator LED light
  • Medical Grade Certification with WMP G/H series
  • Non-stop Swappable Battery architecture
  • High Electricity Current Battery to fulfill High Medical Image Process

FHD, MVA panel, True 8 bit-Visual Clearance to Secure Medical Image Safety


FHD MVA Panel Featured:

Consistently Clear and Precise Images

  • Wide view angle: 178(H)/178(V)
  • High CR, 3000:1
  • Up to 16.7M Colors w/RGB 8 bit
  • 16:9, LED Backlight

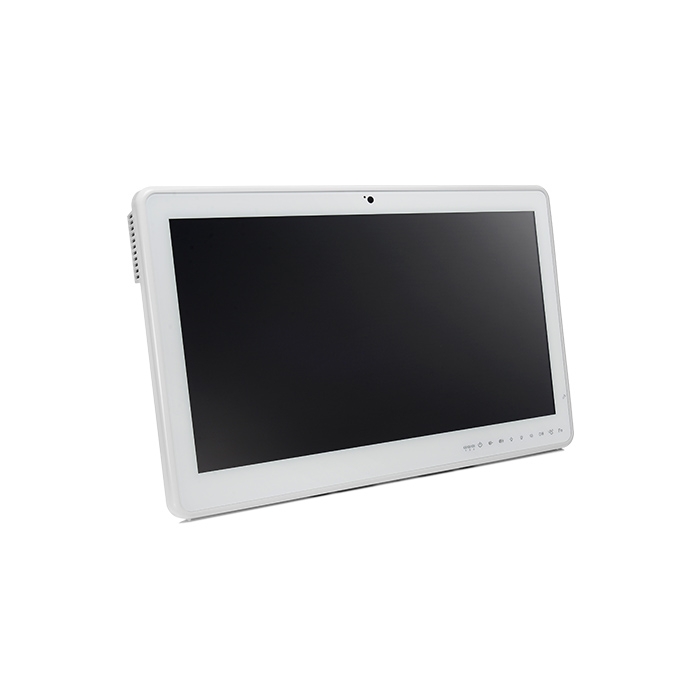

Product Outlook & Friendly Hot-Key Design


Optional USB3.1 gen II (USB5,6) for high speed device


Optional ISO –COM/LAN/USB to avoid expensive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.

Optional Independent GeForce GTX 1050

Efficiency GPU with 4GB dedicated video memory to optimize render high-quality medical images up to 3D applications.

ModelWMP 22H  IP0A (STD)WMP 22H  IP0B (USB3.1)WMP 22H  IP0C (ISO)
Main System
CPU / Chipset LGA1151 Kabylake 7th generation Intel® Core i7/i5 processor, Optional Vpro by Core i5/i7 CPU
Graphic Intel® integrated HD Graphics 630, Optional Nvidia MXM GTX 1050/50W
RAM DDR4 Dual-2400 SODIMMl, non-ECC, 4GB to 32GB
OS Support Win 10 IoT Enterprise LTSC
M.2 M Key 2280 PCIex4 SSD, Optional 2.5” SSD or HDD, mSATA HDD (mini-PCIe)
Expansion PCI-E (x4) x1, Mini PCIe x1, M.2 Type E x1 Optional Network Interface: 802.11 ac/a/b/g/n WLAN + Bluetooth module
Display Size 21.5” wide TFT-Color LCD (16:9)
Display 1920 x 1080 (Full HD), 16.7M colors (MVA, 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 87% / Hardness: ≥7H pencil, pressure 765g/45° / Life: 50000

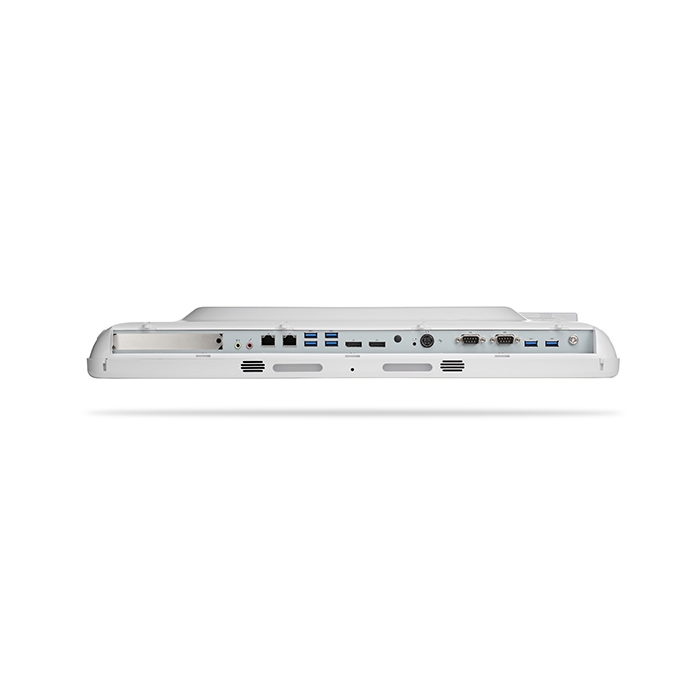

I.O. Ports
USB USB3.0 x 4, Optional Side USB3.0 X 2 (via Mini PCIe) USB3.0 x 4, USB 3.1 Gen. II X 2, Optional Side USB3.0 X 2 (via Mini PCIe) USB3.0 x 4,  ISO USB2.0 X 1, Optional Side USB3.0 X 2 (via Mini PCIe,)
COM RS232/RS422/RS485 X 1
RS-232 x 1
RS232/RS422/RS485 X 1
RS-232 x 1,
ISO RS232/RS422/RS485 X 1
ISO RS-232 x 1
LAN RJ45 X 2 RJ45 x 2 RJ45 x 2, ISO RJ45 x 1
Audio 3.5mm phone jack connector * 2 (Line-out, Mic-In)
Video Out DP x 2
Reading light Light bar x 2
Control Hot Key (R to L) Battery LED Indicator; Power; Audio Volume; Brightness; Reading Light; LCD Light On/Off; Clean Me; Programmable Function
Mechanical and Environmental
Cooling Fan
Battery Pack Optional DR-202 Series, Li-ion Battery x 3
Power Input / Consumption DC-In x 1,  DC 14-28V input / 174W (Full loading)
Power Adapter AC input 100~240V / 47 ~ 63 Hz / DC output 24V 180W
Temperature Operating Temperature: 0~40℃ (Burn-in, not airtight, W/ Battery 0~35℃) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 for Whole System by Project / Front: Full flat design/ Touch (standard)/ Glass( customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing

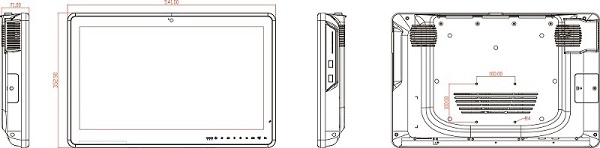

Dimensions (Net) 541.0mm (H) x 352.9mm (V) x 64mm (T)
Weights (Net) 7.5 kg (w/o power adapter/battery pack)

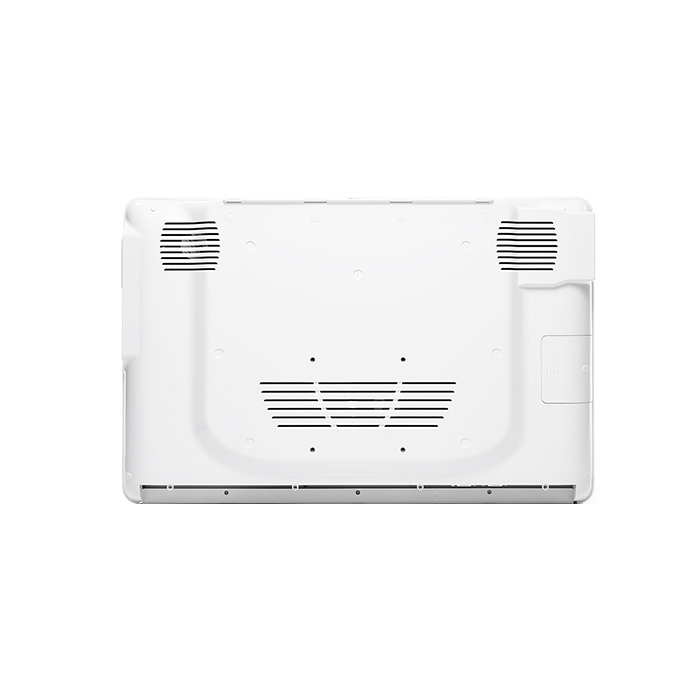

Mounting Optional Stand, VESA 100
Certification CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance
VCCI: 2016-11, Class B (PSU/Battery with PSE)
FCC: Part 18 Class B / UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
ISO 14971 / IEC62133
Options & Customized

Major Options

Battery & Charger

1. Battery Pack: DR202 Series, Li-ion x 3
2. Charger Bank: JW202W2

Add On Parts

1. 5M AF Webcam,
2. TPM 2.0 module,
3. Smart card reader,
4. RFID (13.56MHz),
5. AG Film,
6. 802.11 ac/a/b/g/n WLAN + Bluetooth module ,
7. 2.5" SSD or HDD module,
8. Equipotential Terminal Pin,
9. Full HD capture card,
10. USB 3.0 x 2 at side (Type A) via miniPCIe module,
11. USB3.1 gen2 (USB 5,6)
12. 5V1A power Jack (for Standard & USB 3.1 gen2 Type)
13. Independent NVIDIA T1000 graphic with 4GB dedicated video memory (Support i7/i5 CPU)

Power Cable

1. Power adaptor w/ 2m DC Extension Cable,
2. Power plug holder

Optional kits

1. Anti-bacteria Stand
2. VESA Wall Mount


1. Temper Glass
2. Power Out_COM Port support 5V1A
3. AG Coating
4. DICOM part 14 compliance module
