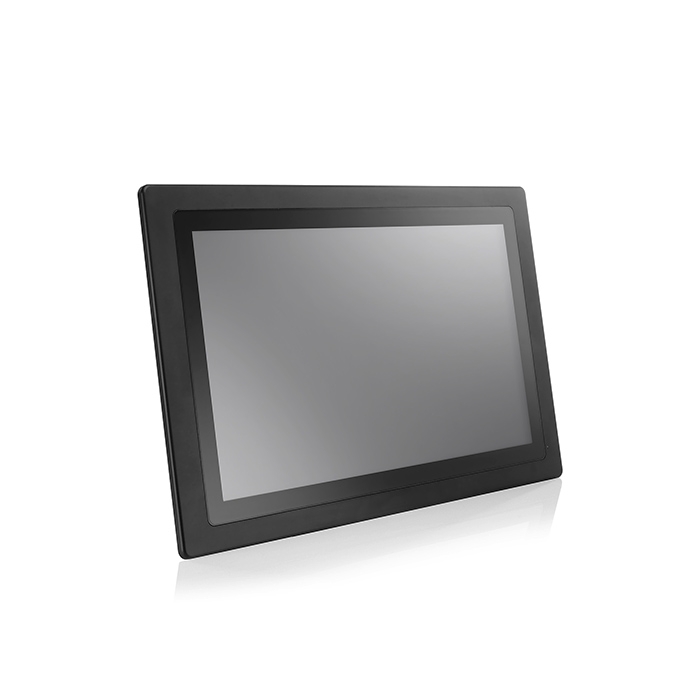

Model | WLP-7F20-22H | ||
---|---|---|---|
Main System | |||
CPU / Chipset | 6th generation Intel® Core i7/i5/i3 processor 7th generation Intel® Core i7/i5 processor |
||
Graphic | Intel® integrated HD Graphics by CPU | ||
RAM | Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB | ||
OS Support | Win 7 pro, Win 7, Win 8.1, Win10 | ||
Storage | 2.5” SATA HDD drive bay x 1 (with anti-vibration mechanism) / SATA DOM | ||
Expansion | Mini PCIe x 1, M.2 Type E x 1 | ||

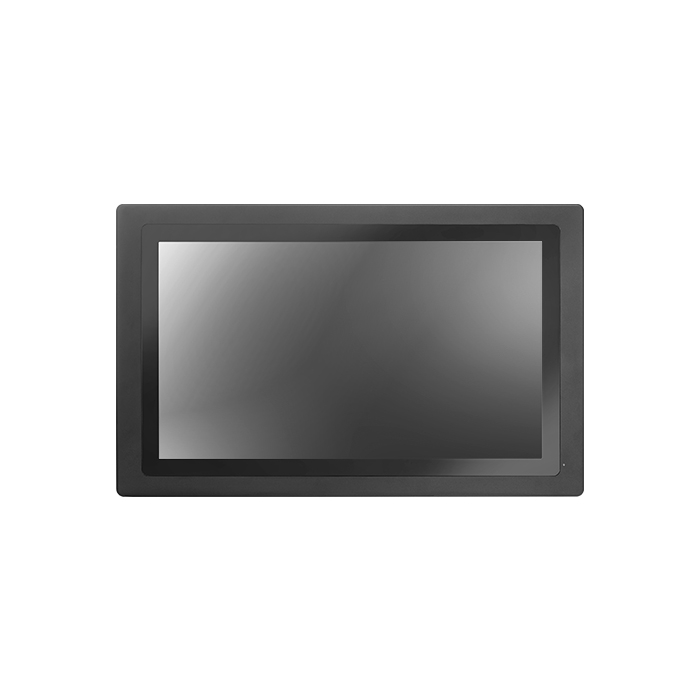

Display Size | 21.5” 16:9 | ||
Display | 1920 x 1080(FHD), 178(H) / 178(V), 1000 nits (Typ. Center point), CR:1000 : 1 (Typ) | ||
Touch Screen (USB) | Full flat projective capacitive touch panel / Light Transmission: 80% ± 5% / Hardness: 7H pencil / Life: 100M times 5 Wire Full Flat Res. Touch / Light Transmission: 80% ± 5% / Hardness: 3H pencil / Life: 35M times |
||

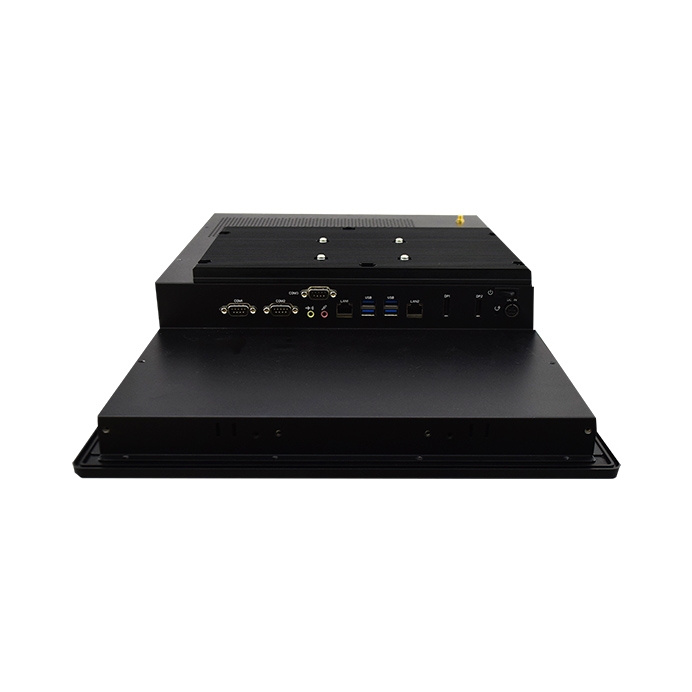

I.O. Ports | |||
USB | USB 3.0 x 4 | ||
COM | RS232 x 2, RS232/RS422/RS485 x 1 | ||
LAN | RJ-45 X 2 | ||
Audio | 3.5mm phone jack connector x 2 ( Line-out, and Mic-in) | ||
Video | DP x 2 | ||
Control Keys | Rear bottom: Power on/off, Reset | ||
Mechanical and Environmental | |||

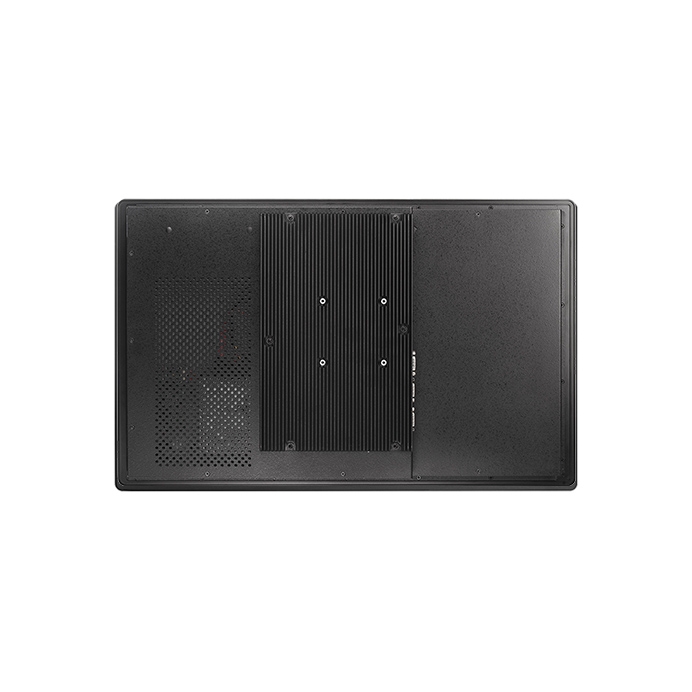

Cooling | Fanless | ||
Power Input / Consumption | DC-in x 1, 9V~32V / TBD W (Max. without power adapter) | ||
Power Adapter | External, 100 watts, universal 100 ~240V AC in, 12V DC out, 8.33A | ||
Temperature | Operating Temperature: -20~60℃ (12V DC, air flow cooling) Storage Temperature: -20~60℃ |
||
Humidity | Operating & Storage:10 ~ 90%, non-condensing | ||
IP Rating / Housing | IP66 at front / Front bezel is Aluminum, others are SECC with black coating | ||

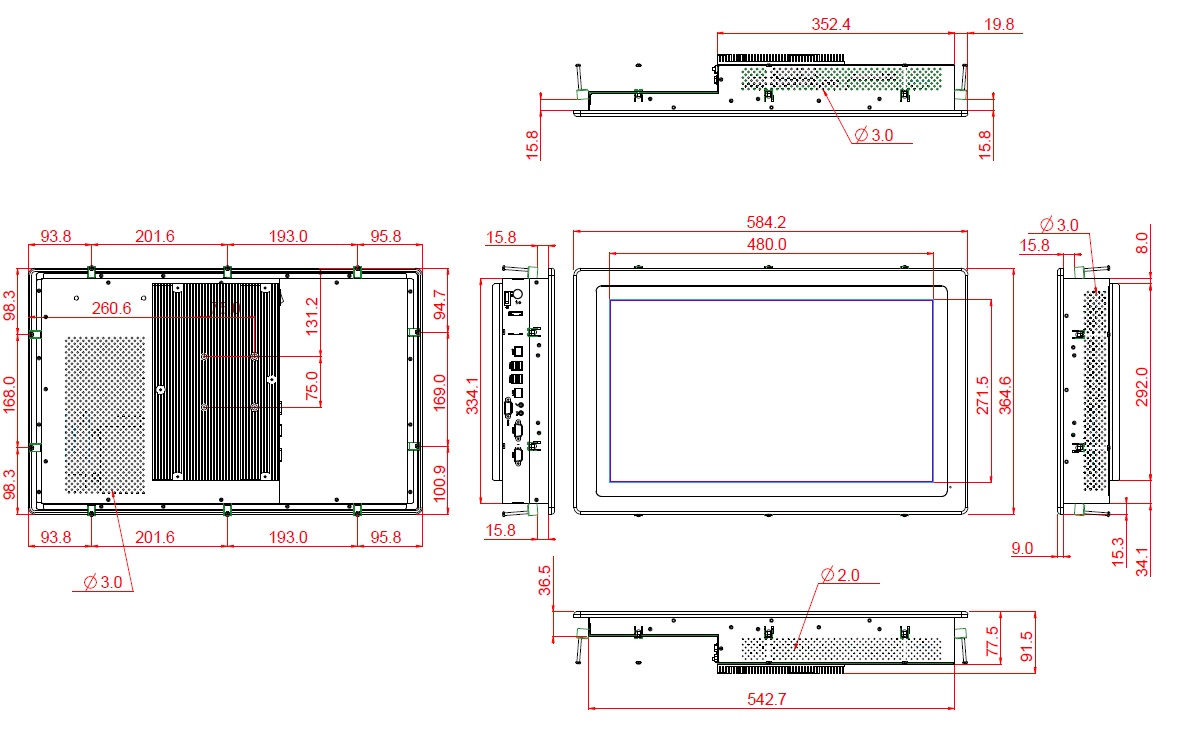

Dimensions (Net) | 584.2 mm (H) x 364.6 mm (V) x 91.5 mm (T) | ||
Weights (Net) | 10 kg (w/o power adapter/battery pack) | ||
Mounting | Panel mount, Optional Open frame / chassis, VESA (75x75) | ||
Certification | FCC/CE/VCCI Class B, Canada ICES-003 |
Major Options | |
---|---|
Add On Parts |
1. Wireless or Wireless and BT kit
2. Stainless steel front bezel
3. Change full flat resistive touch to P-cap touch (BKPT)
4. Silver front bezel
5. Storage door Solution
6. mSATA module
7. TPM 2.0
8. Chassis type housing
9. Second HDD
|
Power Cable |
1. DC input power plug (black, 1.22m length) 2. Maximum length is 5.2 meters by 2x2m DC cables |
Customized |
1. Open frame housing
2. Sunlight readable optical bonding
3. LCD auto dimming
4. LCD super dimming (Low brightness)
|
