Product Name : WLP-7F20 Skylake / Kaby Lake® 15" Wide Temp 1000 nits
Product Description
  • Intel® 6th /7th Generation Core i7/i5/i3 CPU
  • 15" XGA 1000nits Sunlight Readable LCD
  • Wide Temp. -20~60°C Operation Capability
  • Full Flat Resis. Touch w/ Front IP66 Design
  • CE, FCC, VCCI Class B Passed
  • Optional LCD Auto Dimming
Specification
ModelWLP-7F20-15H
Main System
CPU / Chipset Intel® 6th / 7th Gen Core i7/i5/i3 / SoC
Graphic Intel® integrated HD Graphics
RAM
Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Win 7 pro, Win 7 embedded, Win 8 embedded, Win 8 industrial, Win10
Storage 2.5” SATA HDD drive bay x 1 (with anti-vibration mechanism) / SATA DOM
Expansion Mini PCIe x 1, M.2 Type E x 1
Display Size 15” 4:3
Display 1024 x 768(XGA),  160(H) / 160(V), 1000 nits (Typ. Center point), CR:700 : 1 (Typ)
Touch Screen Full Flat 5-wire resistive /  Light Transmission: 80±5% / 3H / 35M times
P-cap touch / Light Transmission: >=86% / 7H / 100M times

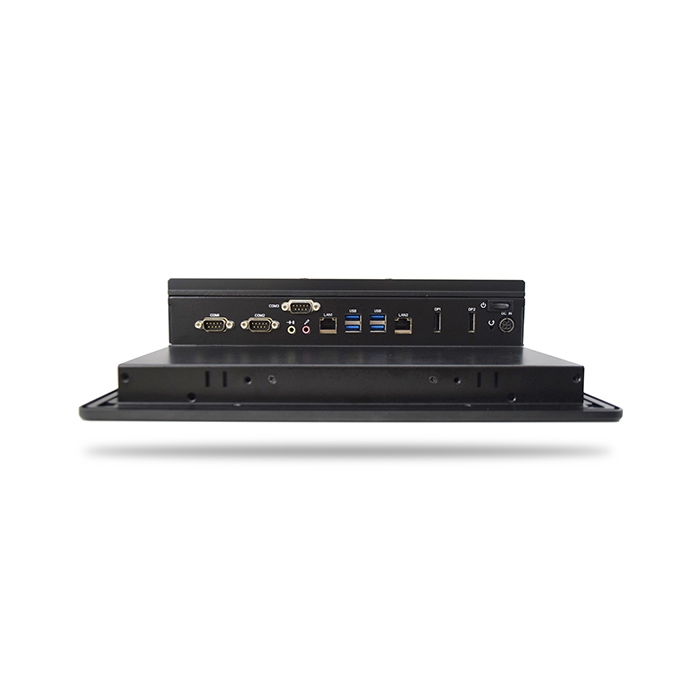

I.O. Ports
USB USB 3.0 x 4
COM RS232 x 2, RS232/RS422/RS485 x 1
LAN RJ-45 X 2
Audio 3.5mm phone jack connector x 2
Video DP x 2
Control Keys  Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC-in x 1, 9V~32V / TBD W
Power Adapter AC 100 ~ 240V /  DC output 12V, 60W
Temperature Operating Temperature: 12V DC Input -20~60℃
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66 at front / Front bezel is Aluminum, others are SECC
Dimensions (Net) 398 mm (H) x 330 mm (V) x 86 mm (T)
Weights (Net) 6.0 kg (w/o power adapter/battery pack)
Mounting Panel mount (by clamp), VESA (75x75)
Certification CE/FCC/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1. Wireless or Wireless + BT kit
2.
Stainless front bezel
3.
Silver front bezel
4. 2.5" SSD
5. TPM 2.0
6. Change to P-cap touch
7. Chassis type housing
8.
Storage door Solution

Add On Cable

1.DC input power plug (black, 1.22m length)
2.Maximum length is 5.2 meters by 2x2m DC cables

Customized

1. Open frame housing
2.
Sunlight readable optical bonding
3. LCD auto dimming
4. LCD super dimming (Low brightness)

Drawing
proimages/products/WLP_BKPT_BKFT/WLP_15/WLP-7B20-15-DW.jpg
