Specification
ModelWTP-9E66-15W
Main System
CPU / Chipset FCBGA1356 6th/7th generation Intel® Core i7/i5/i3 processor 15W max. / Soc
Graphic Intel® integrated HD Graphics 520 by CPU
RAM Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Win 7 pro, Win 7 embedded, Win 8 embedded, Win 8 industrial, Win10
Storage 2.5” SATA  drive bay x 1
Expansion Mini PCIe x 1, M.2 Type E x 1
Display Size 15” TFT-Color LCD (4:3)
Display 1024 x 768(XGA),  160(H) / 160(V), 450 nits (Typ. Center point), CR:600 : 1 (Typ)
Touch Screen Full Flat Resistive touch /  Light Transmission: 80 ± 5% / Hardness: 4H /  Lifetime: 35M times
Projected Capacitive Touch /  Light Transmission: 90 ± 3% / Hardness: 7H /  Lifetime: 100M times

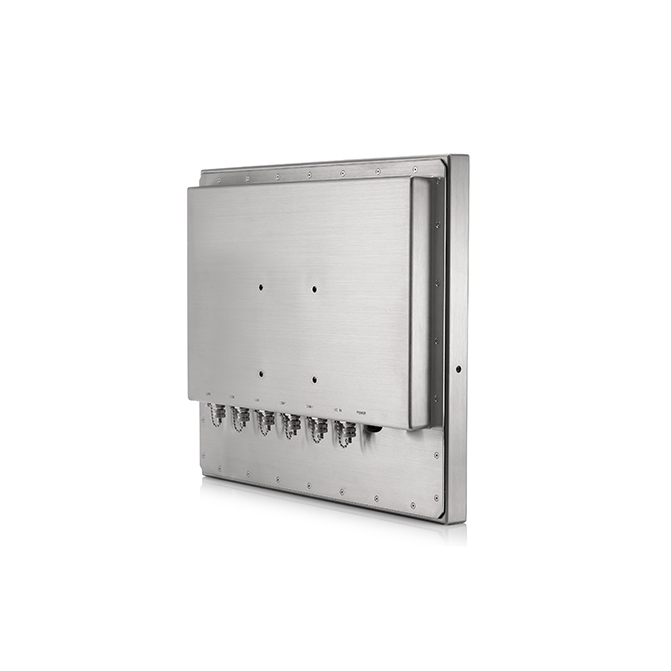

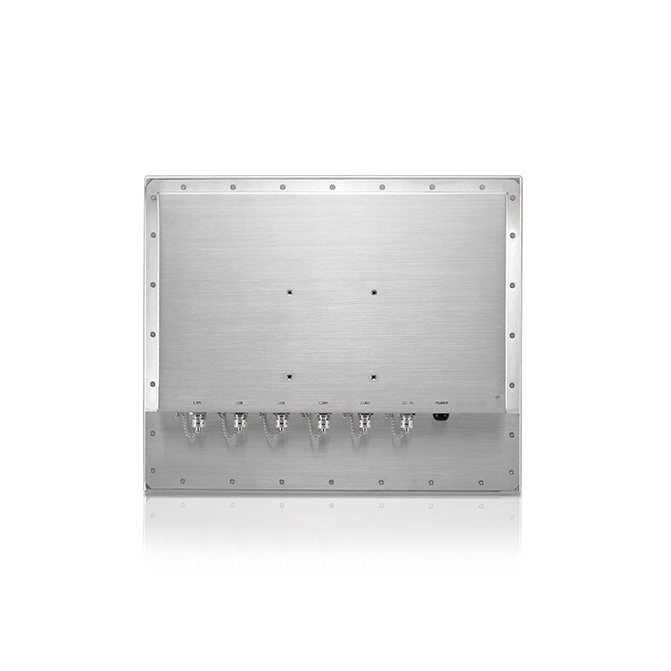

I.O. Ports
USB 1 x M12 8pin for USB 1/2, 1 x M12 8pin for USB 3/4
COM
1 X M12 8pin for COM 1/RS-232,
1 X M12 8pin for COM 2/RS-232/422/485
LAN 1 x M12 8pin for LAN ( i219LM for Vpro )
Control Key  Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC 7V~32V / 53 W
Power Adapter AC 90~264V / 47 ~ 63 Hz / DC output 12V, IP67, 60W
Temperature Operating Temperature:
12V DC Input -20~60℃ (IEC60068-2-56, air flow cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 395 mm (H) x 309.5 mm (V) x 58 mm (T)
Weights (Net) 8.4 kg (w/o power adapter/battery pack)
Mounting VESA 100, side mount (M6*2)
Certification FCC/CE/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1. Wireless LAN or Wireless and BT kit  (Easy Clean and Robust Antenna  or 2 ant)
2. SSD
3. Stainless M12 connector
4. Cable Gland for External I.O.

Power Cable

1. Waterproof M12 to 1 x COM cable
2. Waterproof M12 to 1 x USB cable
3. Waterproof M12 to 1 x LAN cable

Optional kits

1. Wall mount / Table mount bracket

Customized

1. Sunlight readable optical bonding
2. 1000 nit high brightness LCD
3. LCD Auto dimming
4. LCD Super dimming (Low brightness)
5. 5W/2WSpeaker
6. Second HD
7. Intel Core i7-6500U
8. COM + power 5V or 12V
9. Barcode reader
10. TPM
11. External LAN x 2
12. Waterproof USB 3.0
13. IP67
14. Full Flat PCT Touch Screen IP69K
15. SUS316 Enclosure

Drawing
