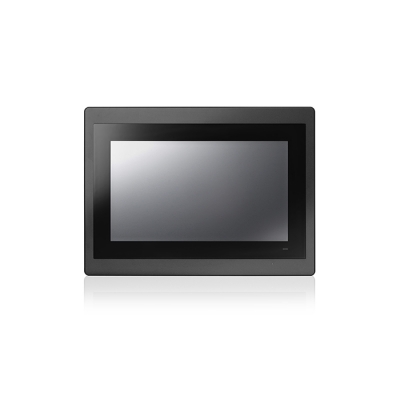

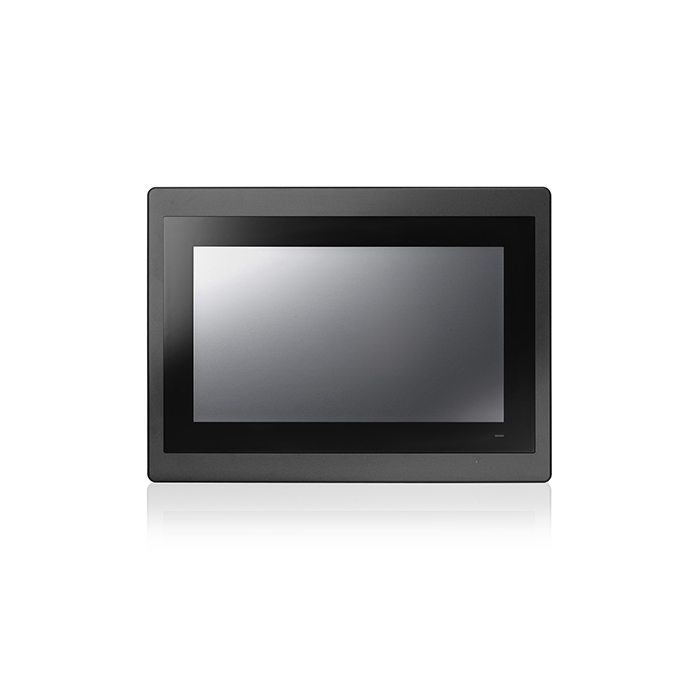

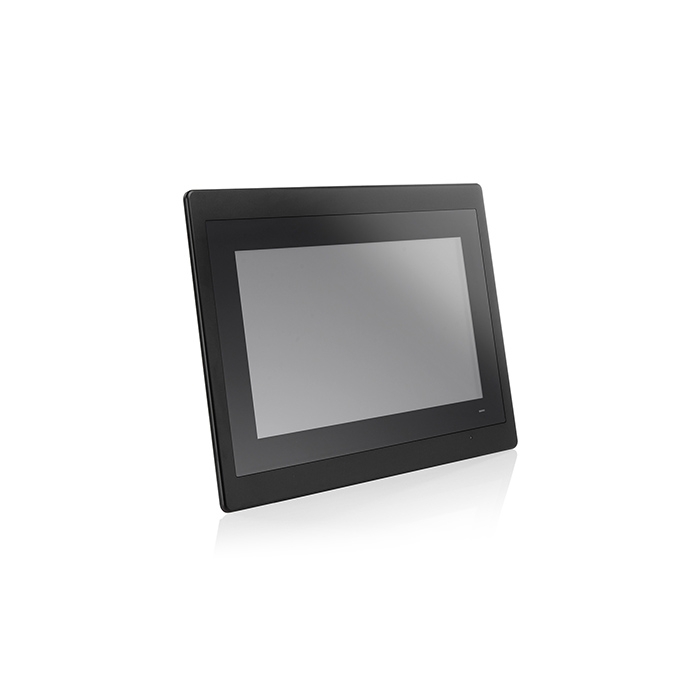

Product Name : WLP-7F20 Skylake/Kaby Lake 15.6"
Product Description
  • Intel® 6th / 7th Generation i7/i5/i3 CPU
  • 15.6" 1366 x 768 LCD Panel
  • Panel Mounted with Full Flat.Touch Screen
  • CE, FCC, VCCI Class B Certified
  • Support Intel® vPro by Optional i7/i5 CPU
  • IP66 Front Easy to Clean
  • Wide Range DC Input
  • Optional WLAN with External Antenna
eNews: Wincomm Announced Intel 6th gen. Core i Skylake CPU Platform WLP-7F20 Fanless Industrial Panel PC Series
eNews: Wincomm White Paper : How to Bring Differentiated AIoT Solutions to Rugged Industries
Product Introduction

Fanless Touch Panel PC Professionals

  • 24/7 operation under 0~50°C & high ambient light without limitation
  • Water/dust proof guarantee
  • No corrosion after long-term usage
Main System
CPU / Chipset 6th generation Intel® Core i7/i5/i3 processor
7th generation Intel® Core i7/i5 processor
Graphic Intel® integrated HD Graphics by CPU
RAM Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Win 7 pro, Win 7, Win 8.1, Win10
Storage Optional 2.5” SATA HDD up to 500GB w/Anti-Vibration Kit
Expansion Mini PCIe x 1, M.2 Type E x 1
Display Size 15.6” 16:9
Display 1366 x 768,  170(H) / 160(V), 400 nits (Typ. Center point), CR: 500 : 1 (Typ)
Touch Screen (USB)  Full flat projective capacitive touch panel /  Light Transmission: 90% ± 3% / Hardness: 7H pencil / Life: 100M times
5 Wire Full Flat Res. Touch / Light Transmission: 80% ± 5% / Hardness: 3H pencil / Life: 35M times

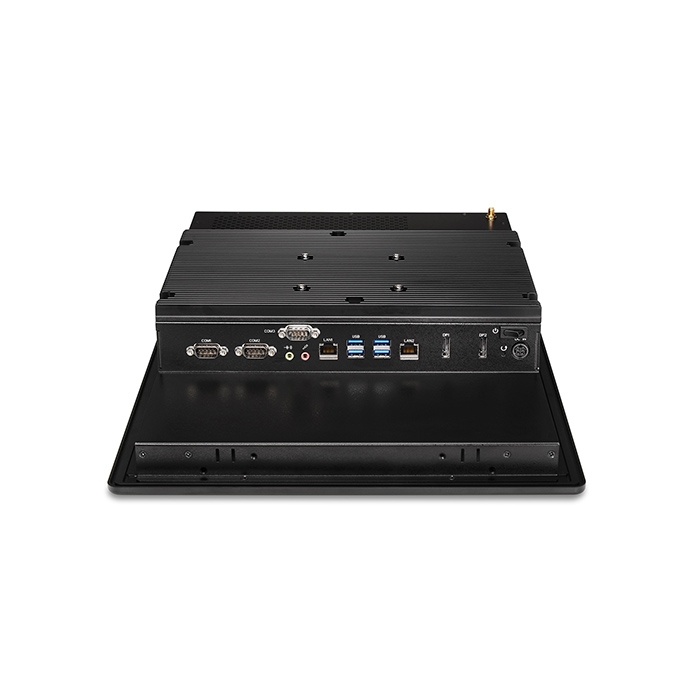

I.O. Ports
USB USB 3.0 x 4
COM RS232 x 2, RS232/RS422/RS485 x 1
LAN RJ-45 X 2
Audio 3.5mm phone jack connector x 2 ( Line-out, and Mic-in)
Video DP x 2
Control Keys  Rear bottom: Power on/off, Reset
Mechanical and Environmental
Cooling Fanless
Power Input  DC-in x 1 9V~32V
Power Adapter External, 60 watts, universal 100 ~240V AC in, 12V DC out, 5A
Temperature Operating Temperature: 0~50℃ (12V DC, air flow cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66 at front / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) 452 mm (H) x 330 mm (V) x 86 mm (T)
Weights (Net) TBD kg (w/o power adapter/battery pack)
Mounting Panel mount, Optional Open frame / Chassis, VESA (75x75)
Certification FCC/CE/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1. Wireless or Wireless and BT kit
2. 2.5” SSD
3. Stainless steel front bezel
4. Change full flat resistive touch to P-cap touch (BKPT)
5. Silver front bezel
6. Storage door Solution
7. mSATA module
8. TPM 2.0
9. Chassis type housing

Add On Cable

1. DC input power plug (black, 1.22m length)
2. Maximum length is 5.2 meters by 2x2m DC cables


1. Open frame housing
2. Sunlight readable optical bonding
3. LCD auto dimming
4. LCD super dimming (Low brightness)
