Specification
ModelWTP-9E66-19W
Main System
CPU / Chipset FCBGA1356 6th/7th generation Intel® Core i7/i5/i3 processor 15W max. / Soc
Graphic Intel® integrated HD Graphics
RAM Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Win 7 pro, Win 7 embedded, Win 8 embedded, Win 8 industrial, Win10
Storage 2.5” SATA  drive bay x 1
Expansion Mini PCIe x 2
Display Size 19” TFT-Color LCD (4:3)
Display 1280 x 1024(SXGA),  170(H) / 160(V), 350 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen Full Flat Resistive touch /  Light Transmission: 80 ± 5% / Hardness: 4H / Lifetime: 35M times
Projected Capacitive Touch /  Light Transmission: 90 ± 3% / Hardness: 7H / Lifetime: 100M times

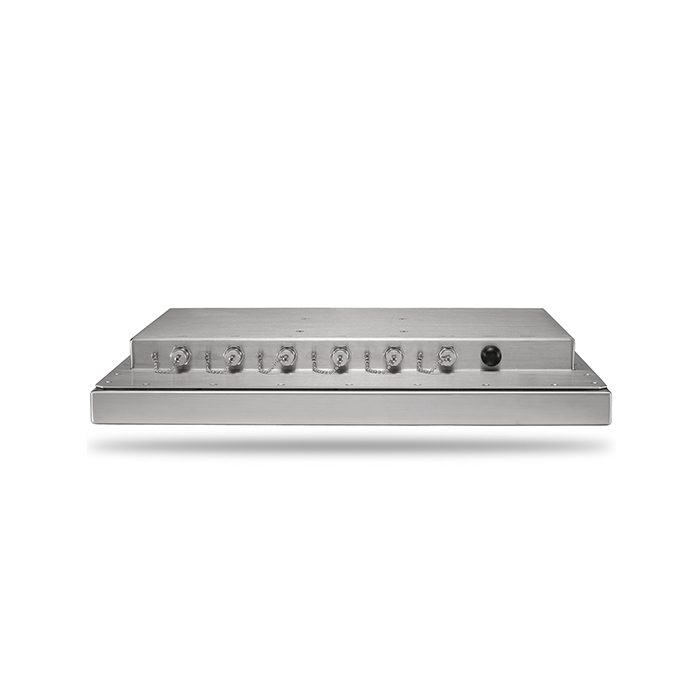

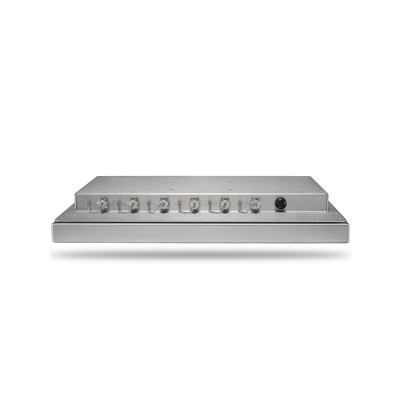

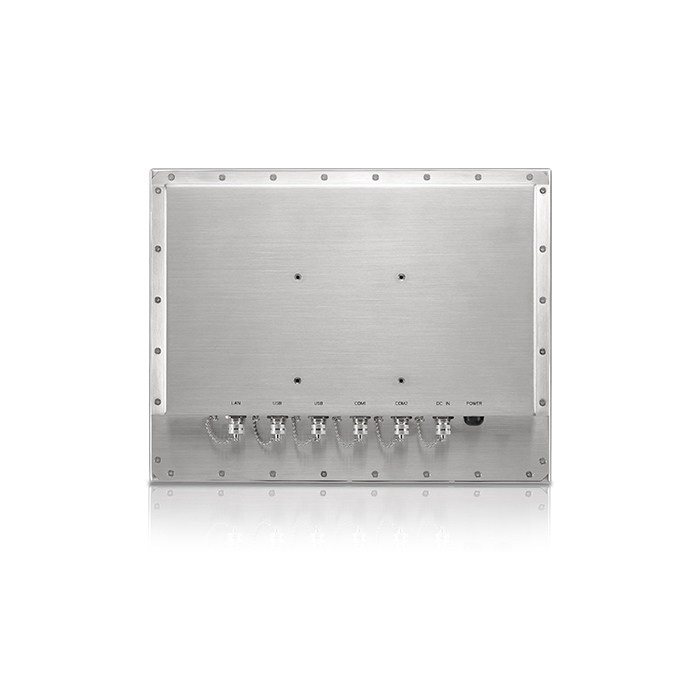

I.O. Ports
USB 1 x M12 8pin for USB 1/2, 1 x M12 8pin for USB 3/4
COM
1 X M12 8pin for COM 1/RS-232,
1 X M12 8pin for COM 2/RS-232/422/485
LAN 1 x M12 8pin for LAN ( i219LM for Vpro )
Control Key  Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC 9V~32V / 52.9 W
Power Adapter AC 90~264V / 47 ~ 63 Hz / DC output 12V, IP67, 60W
Temperature Operating Temperature:
12V DC Input -20~60℃ (IEC60068-2-56, air flow cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 458 mm (H) x 386 mm (V) x 64 mm (T)
Weights (Net) 11.5 kg (w/o power adapter/battery pack)

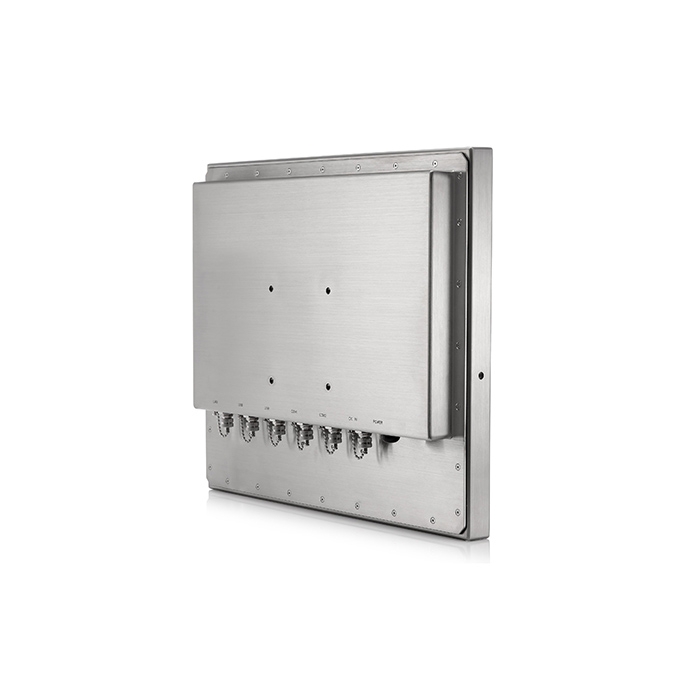

Mounting VESA 100, side mount (M6*2)
Certification FCC/CE/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1. Wireless LAN or Wireless and BT kit  (Easy Clean and Robust Antenna  or 2 ant),
2. SSD,
3. External LAN x 2,
4. Waterproof USB 3.0,
5. Stainless M12 connector,
6. TPM2.0,
7. IP67,
8. SUS316 Enclosure

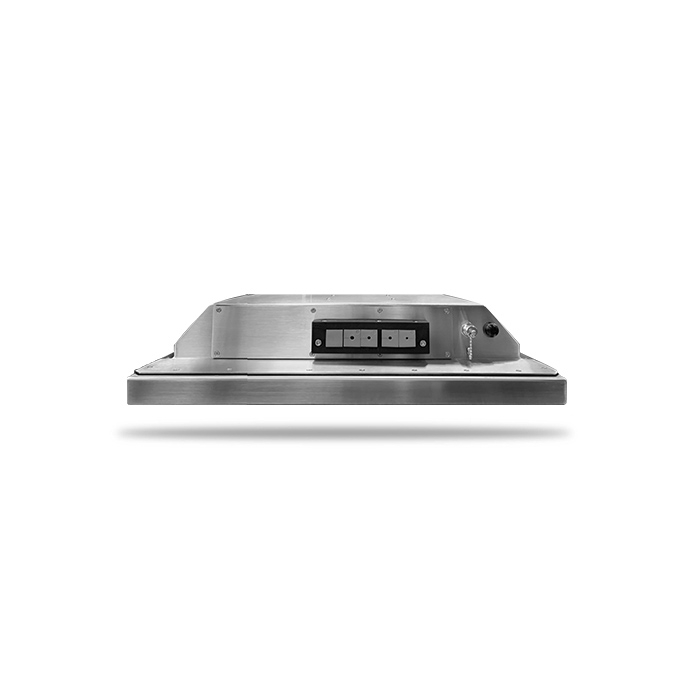

9. Cable Gland for External I.O.

Power Cable

1. Waterproof M12 to 1 x COM cable,
2. Waterproof M12 to 1 x USB cable,
3. Waterproof M12 to 1 x LAN cable

Optional kits

1. Wall mount / Table mount bracket

Customized

1. Sunlight readable optical bonding,
2. 1000 nit high brightness LCD ,
3. LCD Auto dimming,
4. LCD Super dimming (Low brightness) ,
5. 5W/2WSpeaker,
6. Second HD,
7. Intel Core i7-6500U ,
8. COM + power 5V or 12V,
9. Barcode reader

Drawing
proimages/products/WTP/WTP_19/WTP-9E66-19-DW.jpg
