Product Name : Medical Box PC WPC-766
Product Description
Main System
CPU / Chipset LGA1151 package 6th/7th generation Intel® Core i7/i5/i3/Pentium processor (35W max.) / Intel® Q170 Chipset (Intel GL82Q170 PCH)
Graphic Intel® integrated HD Graphics 530
RAM Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Win 7 pro, Win 7 embedded, Win 8 embedded, Win 8 industrial, Win10
2.5”SATA SSD drive bay x 1,
Optional mSATA Co-share space with mini-PCIe
Half support mini-PCIe
Full support mini-PCIe / mSATA

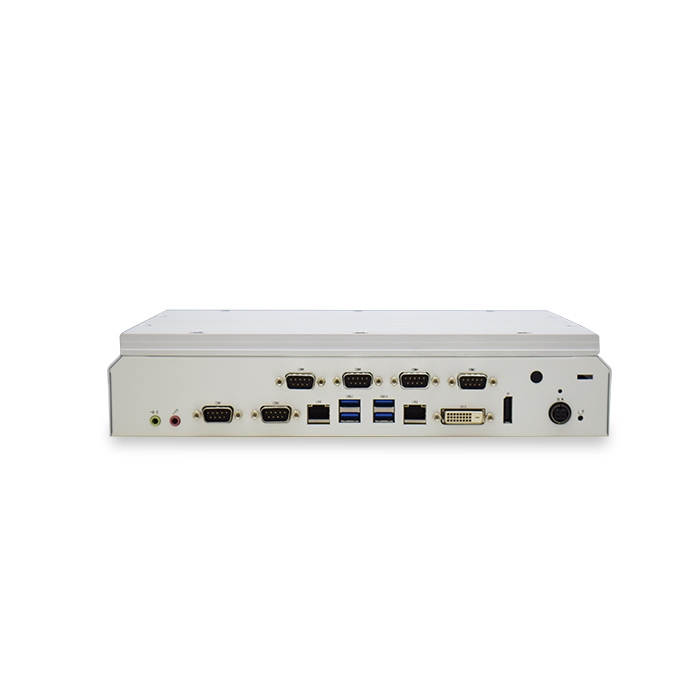

I.O. Ports
USB USB3.0 x 4
COM RS232 x 5, RS232/422/485 x 1
LAN RJ-45 x 2 ,Gigabit
Audio Line-out, Microphone-in
Video Out DVI-D x 1 + DP x 1
Control Hot Key (R to L) Power on/off, reset
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC-in x 1, 9V~28V / 45.5 W (Full loading without Power Adapter)
Power Adapter AC input 100 ~ 240V / 47 ~ 63 Hz / DC output 12V, 100W,1.2m DC cable (Medical Grade)
Temperature Operating Temperature: 0~35℃ (Standard) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
Housing Silver aluminum heatsink and white coating housing (Optional Black heatsink/ housing

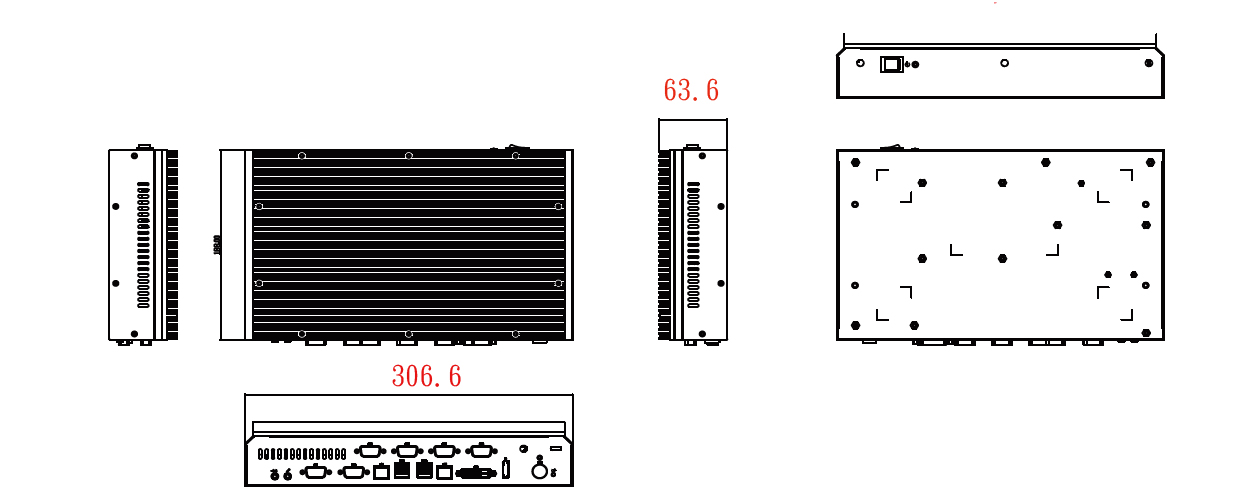

Dimensions (Net) 306.6 mm (H) x 188 mm (V) x 63.6 mm (T)
Weights (Net) 3.0 kg (w/o power adapter/battery pack)
CE: EN 60601-1-2:2015(V4.0),
MDR: EN 60601-1:2006/A1:2013(V3.1)
VCCI: 2016-11, Class B (PSU/Battery with PSE)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
ISO 14971 / IEC62133
Options & Customized

Major Options

Add On Parts

1. TPM 2.0 module,
2. Wireless or Wireless + BT kit
3. Equipotential Terminal Pin,
4. mSATA module

Power Cable

1. Power adaptor w/ 2m DC Extension Cable


1. Black heatsink/ housing,
2. Extra USB Ports 5,6,7,8...10
