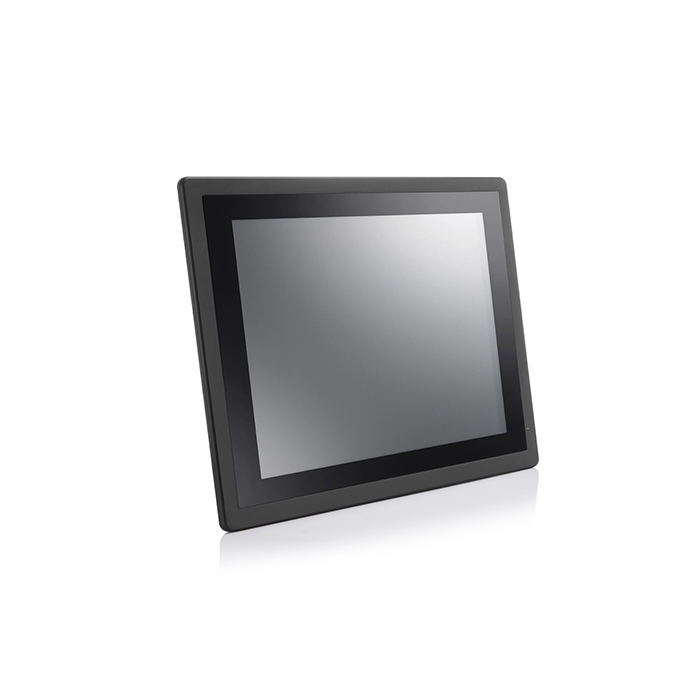

Product Name : WLP-7F20 Skylake / Kaby Lake® 19" Wide Temp 1000 nits
Product Description
Solutions
  • Intel® 6th /7th Generation Core i7/i5/i3 CPU

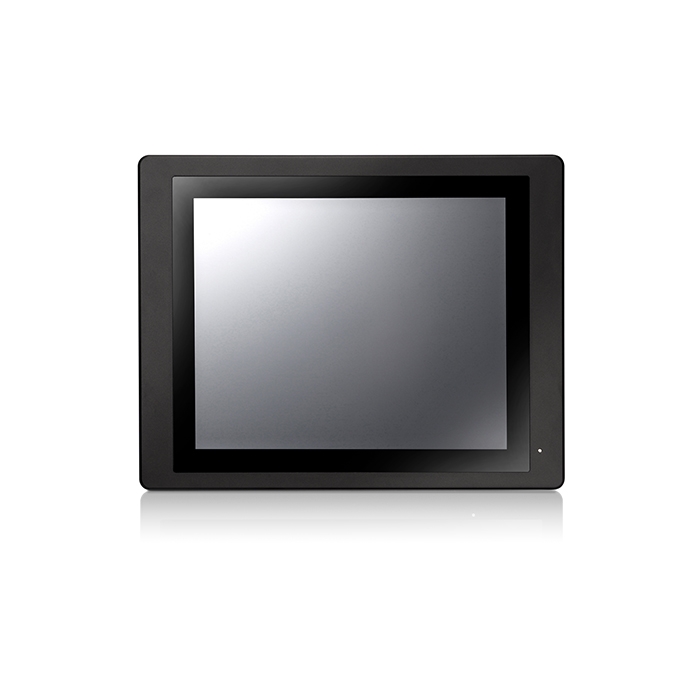

  • 19" SXGA 1000nits Sunlight Readable LCD
  • Wide Temp. -20~60°C Operation Capability
  • Full Flat Resis. Touch w/ Front IP66 Design
  • CE, FCC, VCCI Class B Passed
  • Optional LCD Auto Dimming
Specification
ModelWLP-7F20-19H
Main System
CPU / Chipset 6th generation Intel® Core i7/i5/i3 processor
7th generation Intel® Core i7/i5 processor
Graphic Intel® integrated HD Graphics by CPU
RAM Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Win 7 pro, Win 7, Win 8.1, Win10
Storage 2.5” SATA HDD drive bay x 1 (with anti-vibration mechanism) / SATA DOM
Expansion Mini PCIe x 1, M.2 Type E x 1
Display Size 19” 5:4
Display 1280 x 1024(SXGA),  170(H) / 160(V), 1000 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen  Full Flat Projective Capacitive Touch Panel / Light Transmission: 90% ± 3% / Hardness: 7H pencil / Life: 100M times
5 Wire Full Flat Res. Touch / Light Transmission: 80% ± 5% / Hardness: 3H pencil / Life: 35M times

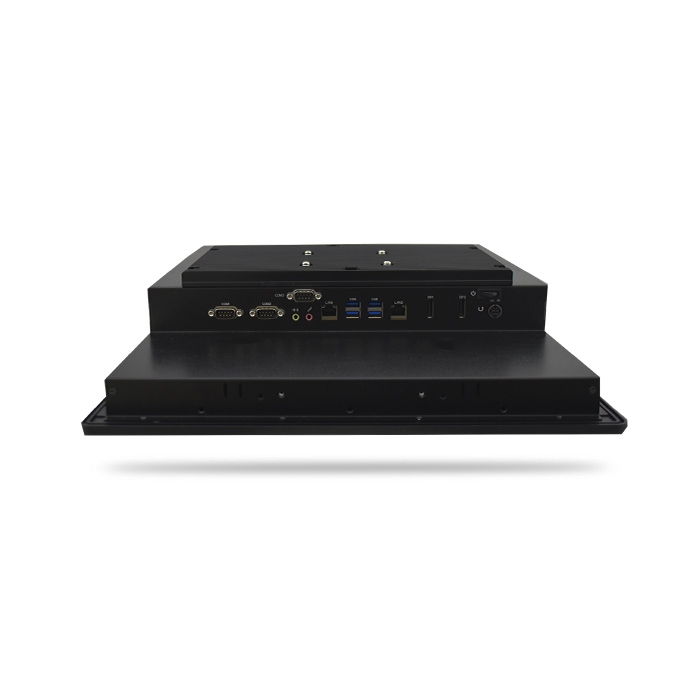

I.O. Ports
USB USB 3.0 x 4
COM RS232 x 2, RS232/RS422/RS485 x 1
LAN RJ-45 X 2
Audio 3.5mm phone jack connector x 2 ( Line-out, and Mic-in)
Video DP x 2
Control Keys  Rear bottom: Power on/off, Reset
Mechanical and Environmental
Cooling Fanless
Power Input  DC-in x 1 9V~32V
Power Adapter External, 100 watts, universal 100 ~240V AC in, 12V DC out, 8.33A
Temperature Operating Temperature: -20~60℃ (12V DC , air flow cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66 at front / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) 495.5 mm (H) x 384.7 mm (V) x 91.5 mm (T)
Weights (Net) 9.2 kg (w/o power adapter/battery pack)

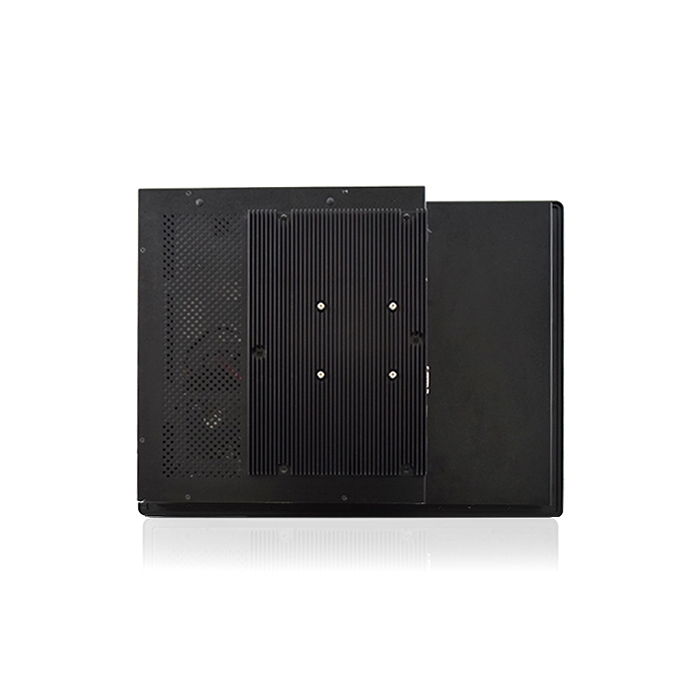

Mounting Panel mount, Optional Open frame / Chassis, VESA (75x75)
Certification FCC/CE/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1. Wireless or Wireless and BT kit
2. Stainless steel front bezel
3. Change full flat resistive touch to P-cap touch (BKPT)
4. Silver front bezel
5. Storage door Solution
6. mSATA module
7. TPM 2.0
8. Chassis type housing

Power Cable

1. DC input power plug (black, 1.22m length)
2. Maximum length is 5.2 meters by 2x2m DC cables

Customized

1. Open frame housing
2. Sunlight readable optical bonding
3. LCD auto dimming
4. LCD super dimming (Low brightness)

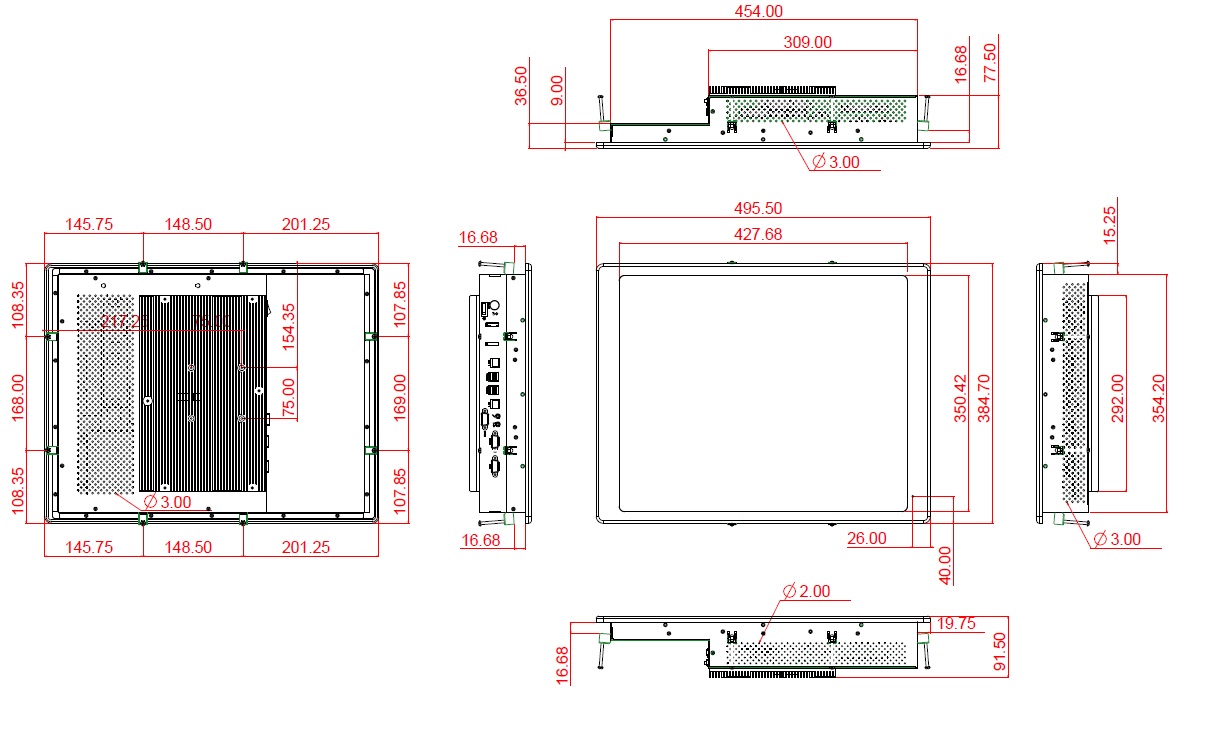

Drawing
proimages/products/WLP_BKPT_BKFT/WLP_19/WLP-7F20-19-DW.jpg
